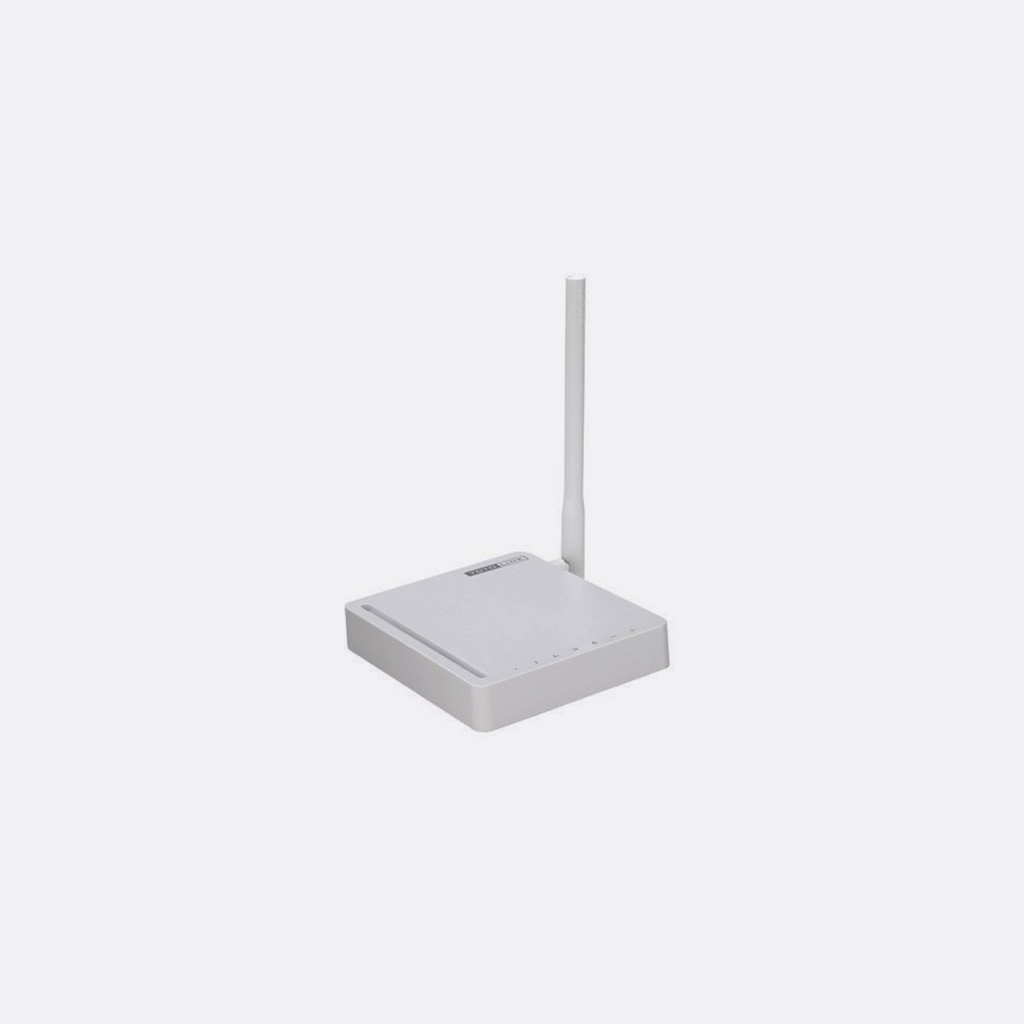

Totolink N-150RB DSL Router
- Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN
- Up to 150Mbps data rate for Wi-Fi network
- Supports PPPoE, DHCP and Static IP broadband functions
- Provides most advanced WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) encryption
- The VPN server can not only protect the privacy of your information, but also simplify network management
- Connects to secure network easily and fast using WPS
- Multi-SSID allows user to create multiple LANs according to their needs
- The IP, MAC and URL filtering makes access and time control more flexibly
- Repeater function allows more PCs to surf Internet
- Smart QoS function can assign bandwidth to PCs equally with just one click
100% Original
30 Days Return
Free Delivery
| Name | TOTOLINK 150Mbps Wireless N Router |
|---|---|
| Brand | TOTOLINK |
| Model | N150RB |
| Interface | 4 *10/100Mbps LAN Ports |
| Power | 9V DC/0.8A |
| Button | RST/WPS Button |
| LED Indicators | 1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN |
| Antenna | 1 *8dBi Detachable Antennas |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| RF Frequency | 2.4~2.4835GHz |
| Data Rate | ● 802.11n: Up to 150Mbps ● 802.11g: Up to 54Mbps (dynamic)● 802.11b: Up to11Mbps (dynamic) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Output Power | < 20dBm(EIRP) |
| Channels | 1-11 (North America), 1-13 (General Europe), 1-14 (Japan) |
| Modulation Type | DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM) |
| Reception Sensitivity | 270M: -61 dBm@10% PER 135M: -65 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER |
| Network Settings | Internet Setup: PPPoE/DHCP/Static IP ●LAN/DHCP Setup: DHCP Server/DHCP Static Lease |
| Wireless | Wireless Basic Setup Multiple BSS Multibridge(Repeater): Wireless Bridge/Wireless WAN MAC Authentication WDS WPS Advanced Setup. |
| NAT/QoS | Port Forwarding DMZ/Twin IP Port Trigger Routing Table. |
| Function | ● Multi-SSID function ● WDS for optimal coverage |
| Firewall Settings | Internet Access Control: IP/MAC Address filtering Net Detector Remote/Internal access list. |
| Management | System Log Administrator Setup Firmware Upgrade System Time Configuration backup/restore |
| Remarks | Excellent Wireless Network Performance |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Country of Origin | South Korea |
| Warranty | 2 years |
