Totolink N-100RE DSL Router
- Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN
- Up to 150 Mbps data rate for WiFi network
- Supports DHCP, Static IP, PPPoE (dual access), PPTP (dual access), L2TP (dual access) broadband functions
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security
- Connects to secure network easily and fast using WPS
- Supports IP, Port, MAC, URL filtering and Port Forwarding
- QoS: Bandwidth Control based on IP/MAC
- Multi-SSID allows user to create multiple SSIDs according to their needs
- Supports VLAN function for IPTV and other internet services
- Universal repeater and WDS function for easy Wi-Fi extension
- Supports TR-069 protocol for remote centralized management
Totolink N-100RE DSL Router

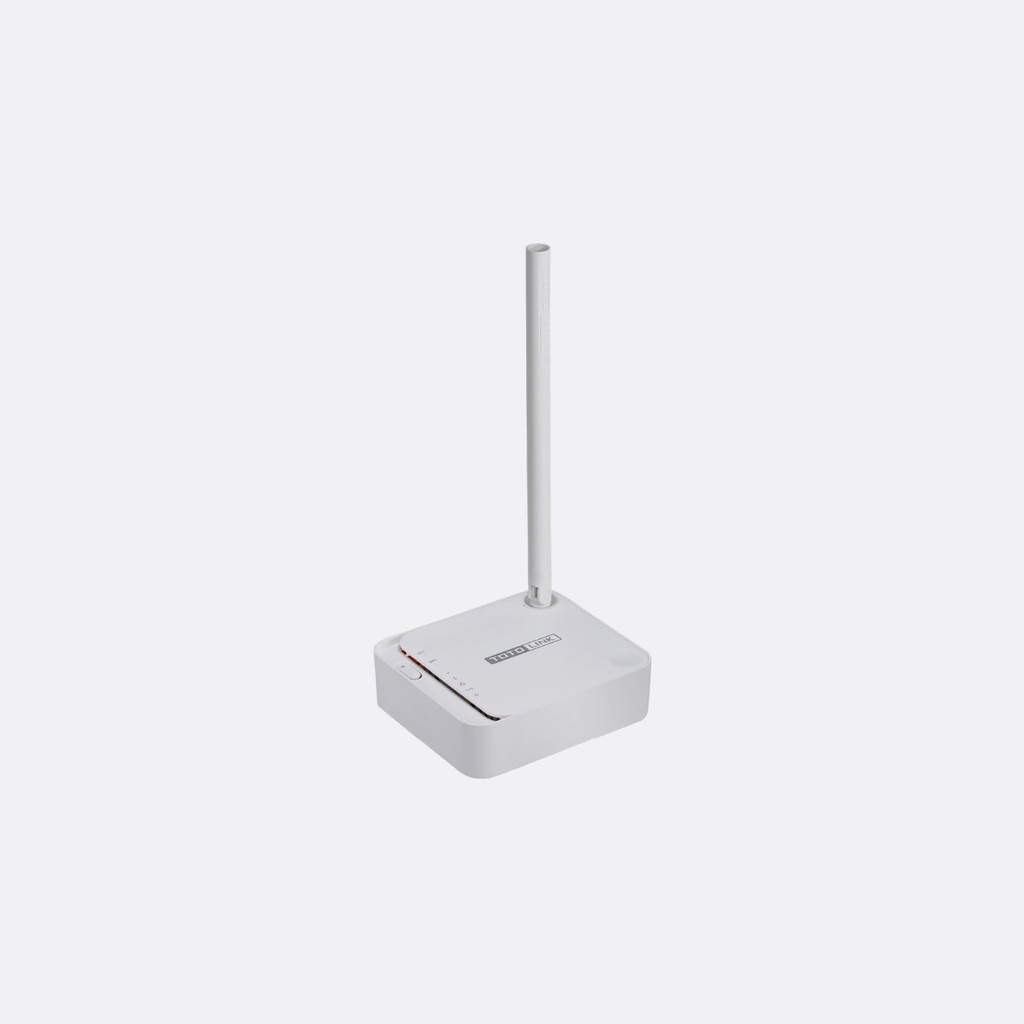

N100RE is a mini wireless router that allows you to access and share high-speed Internet at home. Complies with IEEE 802.11n standard, N100RE delivers up to 150Mbps Wi-Fi and ensures reliable connection through the high-performance antenna. Meanwhile, N100RE supports wired connection via LAN port, a cost-effective solution for general home use
Key Features
- Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless.
- Up to 150Mbps data rate for Wi-Fi network.
- Supports DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2, and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, Port, MAC, URL filtering, and Port Forwarding.
- QoS: Bandwidth Control based on IP/MAC.
- Multi-SSID allows users to create multiple SSIDs according to their needs.
- Supports VLAN function for IPTV and other internet services.
- Universal repeater and WDS function for easy Wi-Fi extension.
- Supports TR-069 protocol for remote centralized management.
Brand | TOTOLINK |
Product Name | TOTOLINK 150Mbps Mini Wireless N Router |
Model | N100RE-V3 |
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Country of Origin | South Korea |
Interface | 2*10/100Mbps LAN Ports, 1 *10/100Mbps WAN Port |
General Functions | EIRP : < 20dBm, Multiple Wireless Networks for Access Control |
Button | 1 *WPS Button, 1 *RST Button |
LED Indicators | 1 *CPU, 1 *Wireless, 1 *WAN, 2 *LAN |
Antenna | 1 *5dBi fixed antenna |
RF Frequency | 2.4~2.4835GHz |
Data Rate | 802. 11n: Up to 150Mbps, 802.11g: Up to 54Mbps (dynamic), 802.11b: Up to 11Mbps (dynamic) |
Wireless Security | 64/128-bit WEP, WPA/WPA2 and WPA-Mixed |
Channels | DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP(dual access) |
Modulation Type | Wireless ISP Client Router, Wireless Client, Repeater(Range Extender), Router Bridge with AP Client |
Reception Sensitivity | 135M: -65 dBm@10% PER, 54M: -68 dBm@10% PER, 11M: -85 dBm@8% PER, 6M: -88 dBm@10% PER, 1M: -90 dBm@8% PER |
Network Settings | VLAN, IPv6 |
Firewall Settings | MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ |
Management | Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control, Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control |
Warranty | 2 years |
Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉), Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
Power | 9V DC/0.5A |
Wireless | Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
