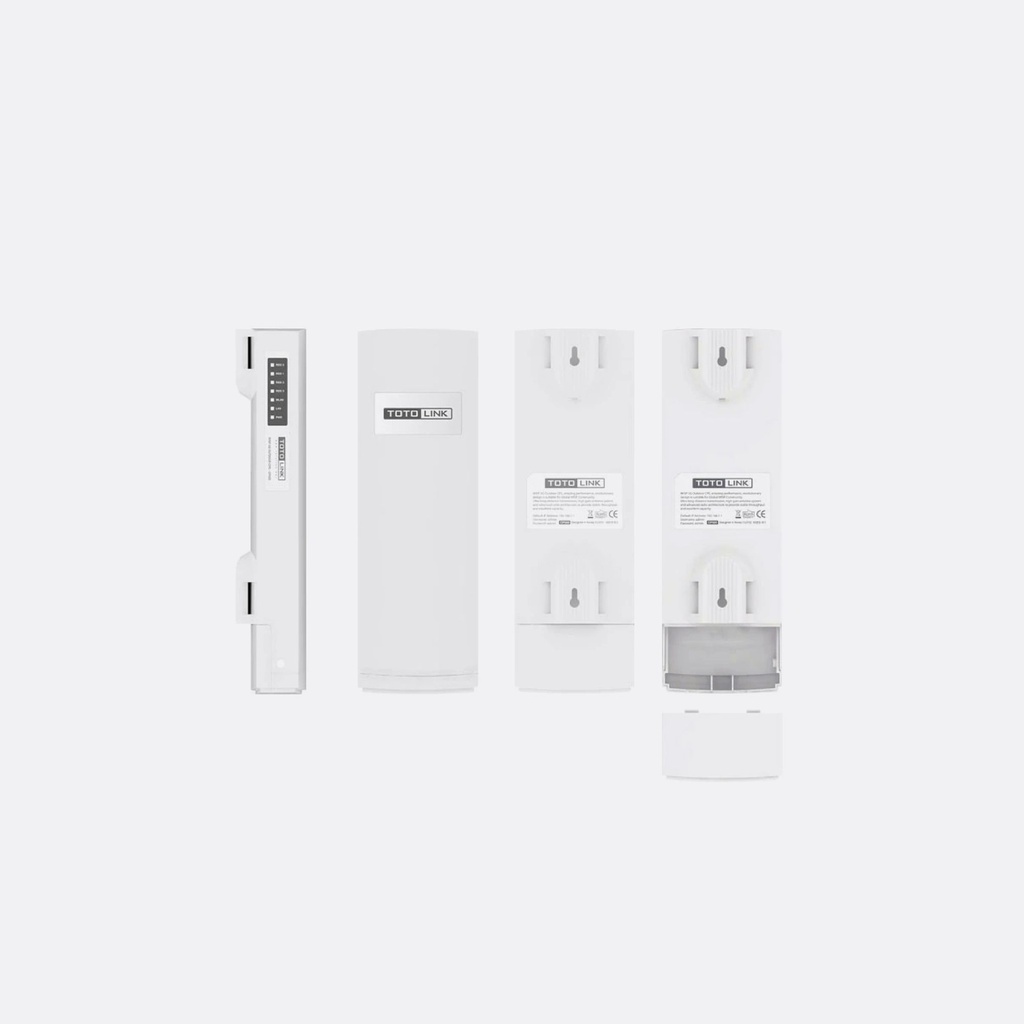

Totolink CP-300 Outdoor CPE
- Complies with IEEE802.11n/g/b standards on 2.4G band
- Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions
- RF power up to 500mw
- 2 x 11dBi internal antennas
- Multiple APs allows user to add other two SSIDs accordingly
- 4-LED signals for strength indications
- Supports 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security
- Repeater function allows more terminals to access Internet
- Supports passive PoE power supply
- Lightning protection design
- QoS can allocate bandwidth reasonably
100% Original
30 Days Return
Free Delivery
| Name | TOTOLINK Outdoor Wireless High Power CPE/Router |
|---|---|
| Brand | TOTOLINK |
| Model | CP300 |
| Interface | 1 *100BaseTX (Auto MDI/MDIX) LAN Port (Passive PoE Supported) |
| Power | 12V DC /1A |
| Button | 1 *Reset Button |
| LED Indicators | 1 *Power, 1 *LAN, 1 *WLAN, 4 *Signal Strength |
| Antenna | 2 *11dBi internal antennas |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3 |
| RF Frequency | 2.4~2.4835GHz |
| Data Rate | 802.11n: up to 300Mbps 802.11g: up to 54Mbps (dynamic) 802.11b: up to11Mbps (dynamic) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Output Power | 27dBm (Max.) |
| Channels | 1-11 (North America), 1-13 (General Europe), 1-14 (Japan) |
| Modulation Type | DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM) |
| Reception Sensitivity | 270M: -64 dBm@10% PER 135M: -65 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER |
| Network Settings | LAN Setup Static DHCP Setup WAN Setup (Bridge mode doesn't have this option) |
| Wireless | Wireless Status / Basic Setting / Security Setting / Advanced Setting Multiple APs / MAC Authentication / WDS / WPS / Repeater |
| Function | ● Outdoor Protection Design ● 2 *11dBi Dual-polarization Antennas |
| Firewall Settings | P/Port Filtering URL Filtering Port Forwarding DMZ Setting Multiple APs Denial of Service |
| Management | Statistics Dynamic DNS Setting (Bridge mode doesn't have this option) Time Zone Setting Remote Management System Log Upgrade Firmware Save/Reload Setting Upgrade Firmware Save/Reload Setting Administrator Setting |
| Remarks | Super Capability for Long-distance Transmission |
| Environment | Operating Temperature: 0℃~55℃ (32℉~131℉) Storage Temperature: -20~65℃ (-4℉~149℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Country of Origin | South Korea |
| Warranty | 2 years |
